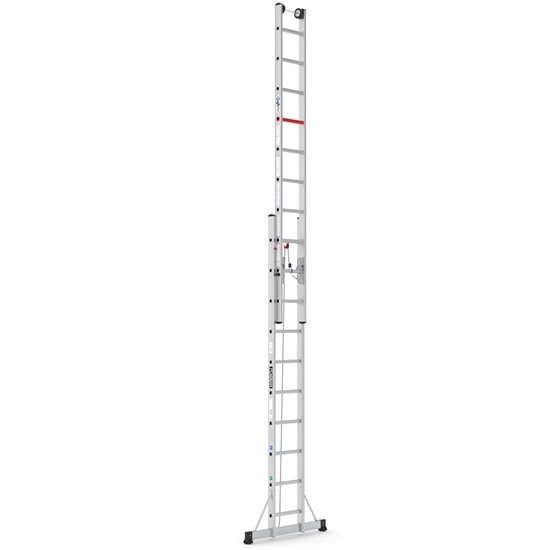

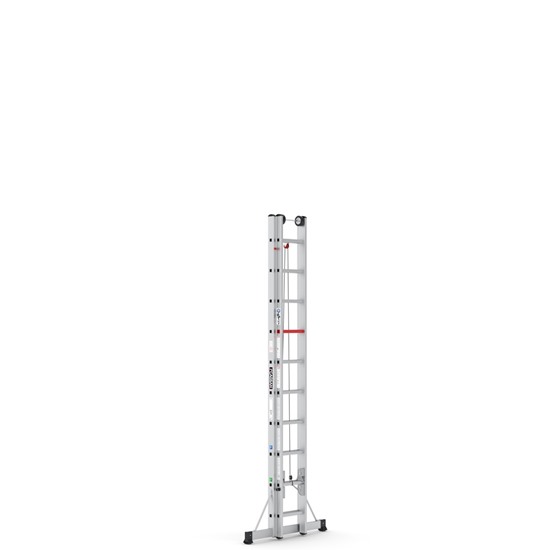

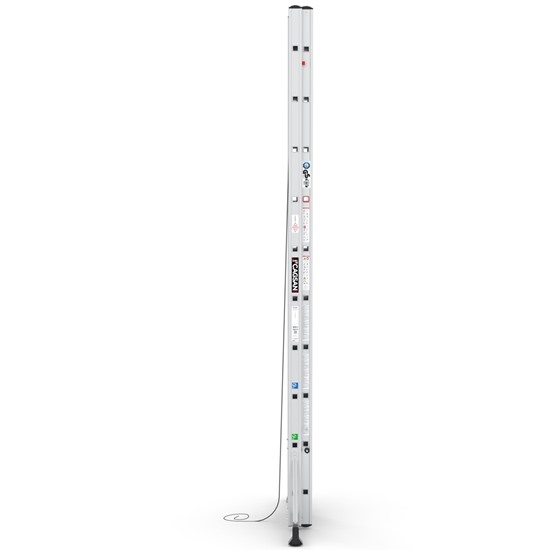

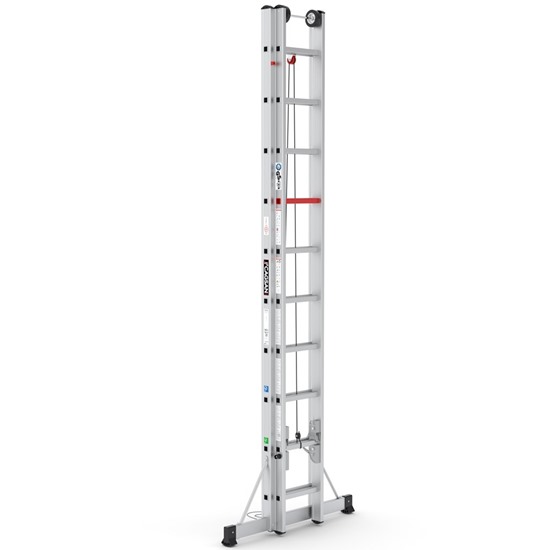

Rope & Pulley Operated Ladders
Rope & Pulley Operated Ladders
The height of the rope&pulley operated ladders that can be used as two-phase and retractable can be easily adjusted by fixing the steel hooks to required step. These ladders have pulleys at the top of the retractable part in order to be easily opened up and also in order to prevent the friction when they independently when required.
??
in stock
Description
 |
 |
 |
 |
 |
 |
|
| (m.) | (m.) | (m.) * | (kg.) | (WxLxH/cm.) | ||
| M1006 | 2×10 | 2,98 | 4,94 | 5,6 | 15,5 | 41x298x15,1 |
| M1007 | 2×12 | 3,55 | 6,07 | 6,7 | 16,0 | 41x355x15,1 |
| M1008 | 2×14 | 4,10 | 6,90 | 7,5 | 18,5 | 41x410x14,6 |
| M1009 | 2×15 | 4,38 | 7,47 | 8,0 | 25,0 | 41x438x18,2 |
| M10010 | 2×17 | 4,96 | 8,61 | 9,1 | 29,0 | 41x496x18,2 |
| M10011 | 2×19 | 5,53 | 9,74 | 10,1 | 31,5 | 41x553x18,2 |
| M10012 | 2×21 | 6,06 | 10,27 | 10,6 | 35,0 | 41x606x18,2 |
* Average safe height when used on red step.
TECHNICAL DETAILS
– Beam Dimensions: 100×25 mm.
– Square Rung Profile: 30×30 mm
– Maximum Load Capacity: 150 Kg.
